G series - CO2 Laser cutter

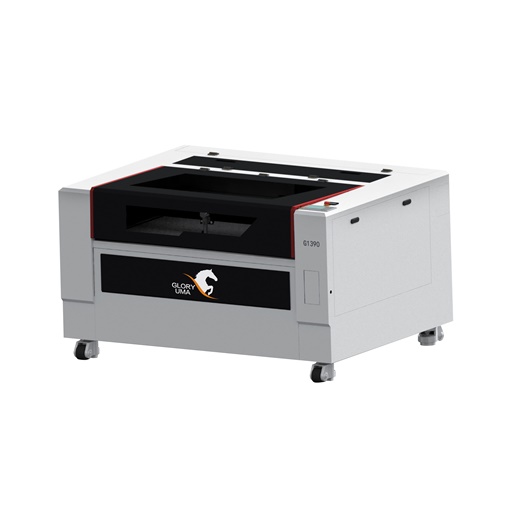

G1390

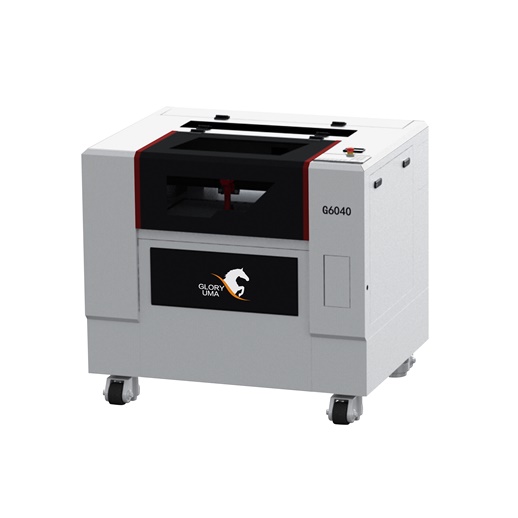

G6040

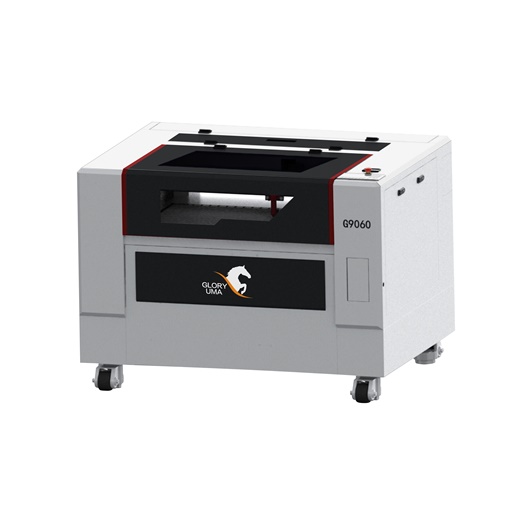

G9060

G series - CO2 Laser cutter

Advantage

1. 64DSP high-speed processor.

2. Windows USB / U disk port supported.

3. Larger offline storage.

4. Simple regulation of laser power.

5. Exquisite circuit design.

6. AWC7813 Touch screen with button Func, RD is available

7. High speed guide system

8. Leadshine motor and motor driver

9. Standard wooden case packaging,Moisture-proof treatment

10. Can be customized according to customer demand.Professional design concept, tailor-made for users in different industries, reasonable structure, beautiful appearance and practical.

11. Dedicated software enables instant graphic or text design,easy,flexible and convenient operation.

12. High quality and strong machine body;High performance laser source,the speed more faster and higher cut quality.

13. Smooth and fine edge or surface and small distortion.

Contact us
  • Main Para
  • Cut Power
  • Work Condition
  • Optional Func.
Main Para.
ModelG1610,G1390,G9060,G6040
Work Area1600*1000mm,1300*900mm,900*600mm,600*400mm,can be customized
Work TableHoneycomb, Blade, or both
Indication Func.Red Pointer
Accuracy±0.01 mm
Minimum letter processing size1*1 mm
Max Cut Speed600 mm/s
Max Engraving Speed900 mm/s
Mach. Size

G1610:2140*1480*1100mm

G1390:1840*1380*1100mm

G9060:1440*1080*1100mm

G6040:1140*880*1100m

Mach. Weight450 KG


Laser Tube Para
Laser Power100W / 130W / 150W / 180W / 200W / 300W
Laser Power ControlStepless Adjustment
Laser Tube Cooling SystemWater Cooling
Wave Length10.6 μm


Work Condition
Temperature range0-45 ℃
Total Power<1150 W
Supported FormatPlt>DXF>AI>DST>JPG
Windows systemWin7, Win8, Win10, Win11
Transmission typeBelt
Safety DeviceEmgergency stop button
Motor/Motor DriverLead shine
Voltage range100V~230V
Frequency range50~60 Hz


Optional Func.
Optioinal Func 1Add CCD:Visually assisted cutting.
Optioinal Func 2Add SCCD:Extremely optimized CCD function in terms of work efficiency.
Optioinal Func 3Add Projector: As a visual aid alone, or as a supplement to CCD and SCCD.
Optioinal Func 4Add cut head: Improve single product cutting efficiency. Not Suggestted in G6040 Model.
Optioinal Func 5Add Up&Down table: Suitable for Thickness material than 20mm.
Optioinal Func 6Add Rotary Device: Handling objects with circular surfaces, such as bottles, sticks, etc.
