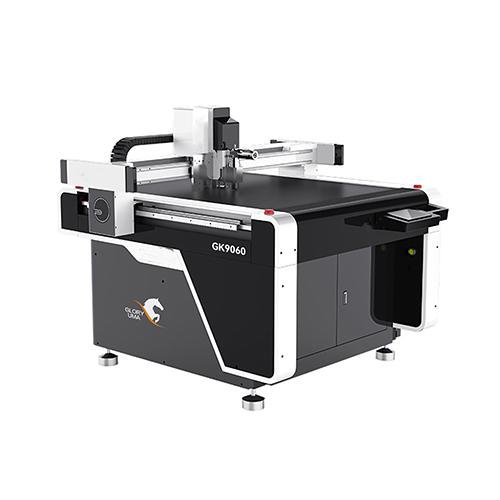

GK series - Knife cutter

Advantage

1. Thick square pipe integral welded bed: The bed of this machine is an ntegral welding bed. Made of five axis large gantry fine iron, body thickness 5 mm thick, and after high temperature heat treatment, give full play to the rigidity of the material, so as to ensure that the machine in the later use process, can achieve durability without deformation.

2. Vibrating tool head: Independently developed, Swiss imported motor, vibration frequency 300rad/s

3. Circular knife cutting head: Suitable for cutting clothing cloth, cutting speed at 12000 RPM

4. Pneumatic cutter head: Compressed air as the power, for the thickness  of large, strong hardness of the material used."

5. Guide: A. High precision. B. Less abrasion, can maintain the accuracy  of the machine for a long time. C. It can move at high speed and  consume low energy. D. It can bear the load of up, down, left and right in multiple directions. E. Easy assembly and interchangeability. F. Simple lubrication structure."

6. Rack: A. Large transmission power, transmission power can reach 105KW. B. Longer life, stable work, high reliability. C. Can ensure constant transmission ratio, can transfer the motion between two axes at any included Angle.

7. Panasonic Servo motor driver: High precision, fast speed, strong stability, low failure rate, suitable for high speed and large torque working state. Standard 750 watts x axis, 400 watts Y axis, 100 watts Z axis, 100 watts W axis
